Backpack ad-hoc network
BF01A lightweight backpack emergency communication hub, enabling multi-hop ad-hoc mesh networking for real-time voice, image, and data transmission.
The BF01A is the core device of the on-site emergency command and communication solution. It features the ability to acquire and transmit on-site images, voice, and data, and is suitable for applications such as mobile coverage, multi-hop relay transmission, and long-distance coverage. It is characterized by its small size, light weight, and high integration, making it easy to carry and deploy quickly.
Key Functionality:As the core equipment of the on-site emergency command and communication solution, it plays a crucial communication hub role.
Multi-Service Integrated Processing Capabilities:t possesses integrated acquisition and transmission capabilities for on-site images, voice, and data, meeting the full range of emergency command needs.
Strong Network Transmission Capabilities:Supports complex transmission scenarios such as mobile coverage, multi-hop relay transmission, and long-distance coverage, offering wide communication coverage and flexible networking options.
Portable and Easy to Deploy:The device is small, lightweight, and highly integrated, facilitating easy on-site transport, rapid setup, and mobile deployment.
Good Scenario Adaptability:Adaptable to various complex environments and mobile communication needs at emergency sites, offering strong practicality.
| Name | Specification |
| RF parameters | Operating frequency band: 1.4GHz (1420MHz~1530MHz) |
| Number of channels: 2 | |
| Transmission frequency: Maximum transmission power 33dBm | |
| Sensitivity: -97dBm/20MHz (accessible) | |
| Performance parameters | Carrier bandwidth: 5MHz/10MHz/20MHz |
| Number of network devices: Supports a maximum of 32 nodes in a network. | |
| Single-hop latency: One-way latency less than 25ms@20MHz | |
| Data rate: Peak rate 80Mbps | |

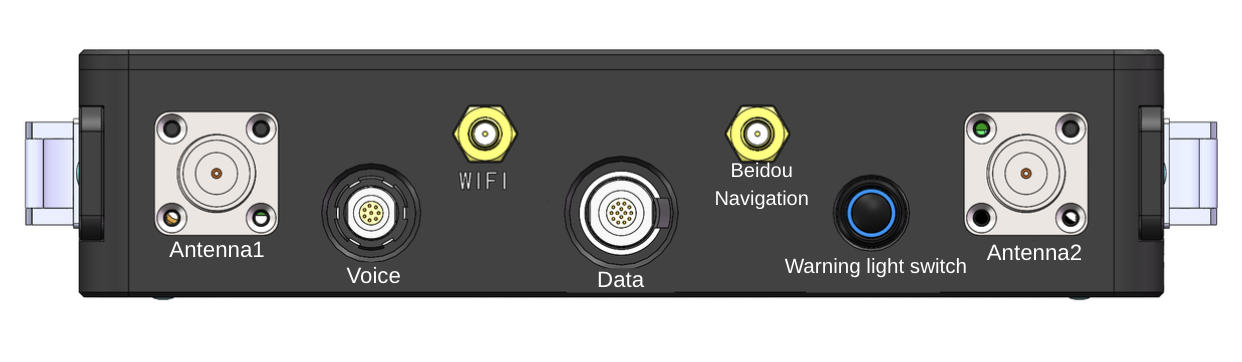

| Interfaces | 1*RJ45, 1*WIFI, 1*BD, 2*1.4G power amplifier antennas |
| Power | AC 220V 50HZ |
| Size | 480*450*37.6mm |
| Weight | Less than 6kg（Accessories not included） |
| Obedient temperature | Working temperature ：-20℃~55℃ Storage temperature ：-30℃~65℃ |
What are your core products?
A: Our core products include:
Portable Command & Dispatch Consoles
Integrated Triple-Screen Mobile Command Terminals
Emergency Communication System Solutions
Multi-Terminal Collaborative Command Platforms
What are the core advantages of your products?
A:
Rapid Deployment (Out-of-the-box readiness)
Multi-Network Convergence (4G/5G/Satellite/Private Networks)
Multi-Source Video Access (Drones, Body-worn cameras, etc.)
ntelligent Dispatch & Coordinated Command
