Vehicle-mounted ad-hoc network
Low-latency, vehicle-mounted ad-hoc mesh network system providing stable real-time data transmission in high-speed mobile emergency rescue environments.
Vehicle-mounted ad hoc network products can meet users’ real-time communication requirements in high-speed mobile scenarios, enabling stable and efficient bidirectional data transmission between nodes. They are suitable for various on-site command and control operations, including public security emergency response, forest fire fighting, urban fire rescue, large-scale event security, power restoration, and emergency disaster relief.
High-speed mobility adaptability: Designed specifically for high-speed mobile vehicle scenarios, ensuring uninterrupted communication while on the move and meeting dynamic networking requirements.
Outstanding real-time communication capabilities: Supports low-latency, high-real-time communication, ensuring rapid interaction between command instructions and on-site information.
Multi-scenario emergency command adaptation: Applicable to various emergency command scenarios such as public security emergency response, fire rescue, large-scale event security, power restoration, and disaster relief.
Flexible self-organizing network deployment: Eligible for fixed base stations and traditional communication networks, enabling rapid and self-organizing networking and convenient on-site deployment.
Excellent emergency support capabilities: Images remain stable even in complex, harsh environments with no public network coverage, providing reliable communication support for emergency rescue.
| Name | Specification |
| RF parameters | Operating frequency band: 1.4GHz (1420MHz~1530MHz), other frequency bands can be customized. |
| Number of channels: 2 | |
| Transmit power: Maximum transmit power 40dBm | |
| Sensitivity: -97dBm/20MHz (accessible) | |
| Performance parameters | Carrier bandwidth: 5MHz/10MHz/20MHz |
| Number of network devices: Supports a maximum of 32 nodes in a network. | |
| Single-hop latency: One-way latency less than 25ms@20MHz | |
| Data rate: Peak rate 80Mbps | |

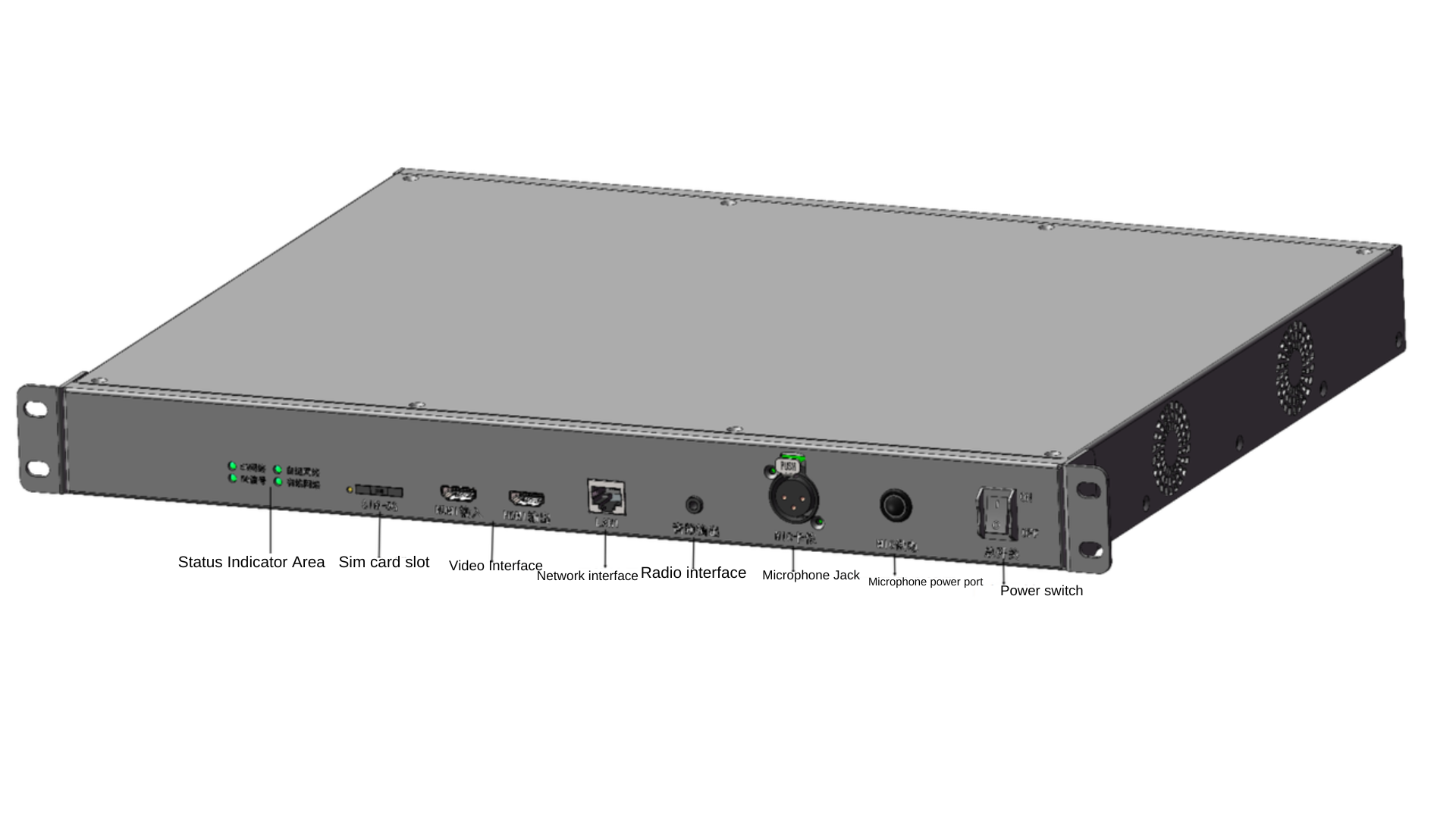

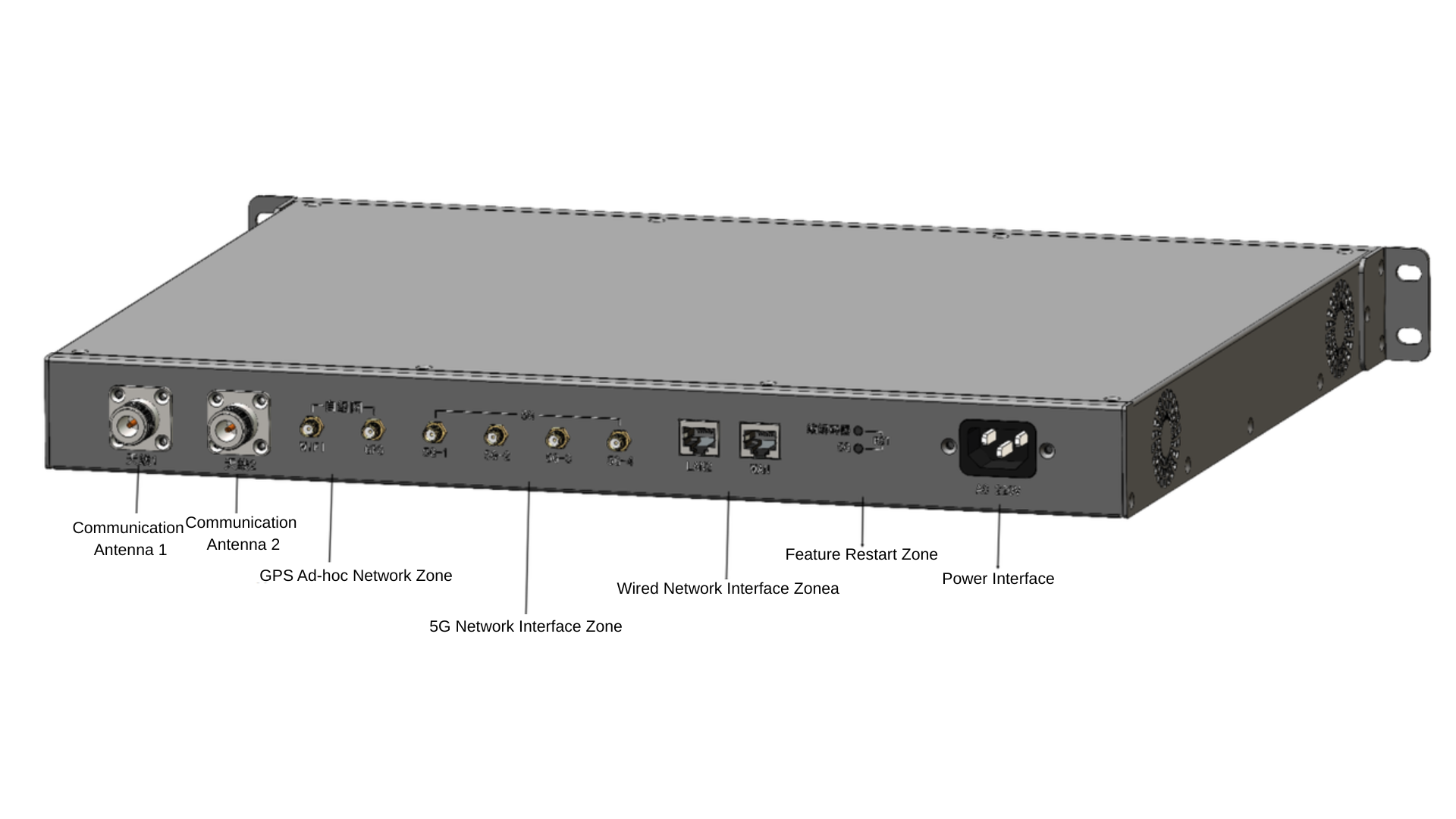

| Interfaces | Network interfaces: RJ45*2, 1*WIFI, 1*GPS, 2*1.4G auxiliary antennas |
| Power | 1*AC 220V |
| Size | 480*450*37.6mm |
| Weight | ＜5.6kg（No accessories included） |
| Obedient temperature | Working temperature ：-20℃~55℃ Storage temperature ：-30℃~65℃ |
