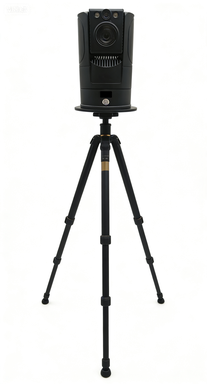

Deployment camera（Portable PTZ Camera）
Dedicated for best quality innovations
Deployment camera（Portable PTZ Camera）
IP66 wireless PTZ surveillance camera with 5G dual-mode connectivity and 80m night vision, designed for rapid emergency on-scene deployment.
The high-definition surveillance PTZ camera is a comprehensive, portable, and convenient wireless video emergency command integrated product. It boasts high integration, a built-in high-performance lithium battery, and an IP66 waterproof rating, meeting the special requirements of temporary deployment and rapid installation. The upgraded 4G module offers faster transmission speeds and supports comprehensive coverage across multiple network standards, while remaining backward compatible with 3G and 2G networks. During missions, the device can be temporarily installed at the location requiring monitoring or on vehicles. It is primarily used in the power industry, public security, traffic police, fire departments, military regions, courts, prisons, environmental protection agencies, and other similar units.
High-definition video encoding: Employs H.265 video encoding, supports dual streams, and achieves a maximum resolution of 1080P, delivering clear and efficient image quality.
Full-link flexible combination: Built-in 4G modules in the upper and lower card slots, compatible with 2G/3G/4G networks, supporting SA/NSA dual-mode.
Precision and stable drive: Equipped with a new ultra-thin precision stepper motor, ensuring smooth operation and accurate and reliable positioning.
Superior night vision and storage: Infrared night vision range up to 80 meters; equipped with dual TF card slots, each supporting up to 256GB, providing ample storage capacity.
Intelligent and security expansion: Supports intelligent automatic defogging, maintaining high-definition image quality around the clock; expandable security chip enhances device security.
| Number | Name | Specification |
| 1 | Image Sensor
| 1/3″ Progressive CMOS |
| 2 | Resolution
| 1920*1080 |
| 3 | Lens
| 30× optical zoom; 16× digital zoom
|
| 4 | Focal Length
| f = 5.6 mm (wide end) ~ 168 mm (telephoto end)
|
| 5 | Audio Interface
| 3.5 mm audio interface, supports voice intercom (compatible with handheld microphone)
|
| 6 | Bluetooth
| Supported; built-in Bluetooth module for external Bluetooth headset or speaker
|
| 7 | Network
| Dual SIM slots with built-in 4G full-network module, supporting multiple network standards with backward compatibility to 3G and 2G; optional support for 2.4G / 5.8G Wi-Fi
|
| 8 | Positioning
| Supports GPS and BeiDou positioning
|
| 9 | Pan-Tilt Unit (PTZ)
| Angle Range: Horizontal: 360° continuous rotation; Vertical: -30° ~ +90° Speed: Horizontal: 60°/s; Vertical: 40°/s Presets: 255 Infrared: Max illumination distance 80 m |
| 10 | Power Supply
| Built-in 10 Ah lithium battery; up to 12 hours continuous operation
|
| 11 | Storage
| Supports TF card interface; plug-in type; dual SD card storage; up to 256 GB per card
|
| 12 | Dimensions & Weight
| Dimensions: Φ167 mm × 241 mm; Weight: 3.7 kg
|
| 13 | Environmental Conditions
| Humidity: 10%–90% (non-condensing) Temperature: -35°C to 55°C |
