Fixed Base Station Ad-hoc Networks
Low-latency, vehicle-mounted ad-hoc mesh network system providing stable real-time data transmission in high-speed mobile emergency rescue environments.

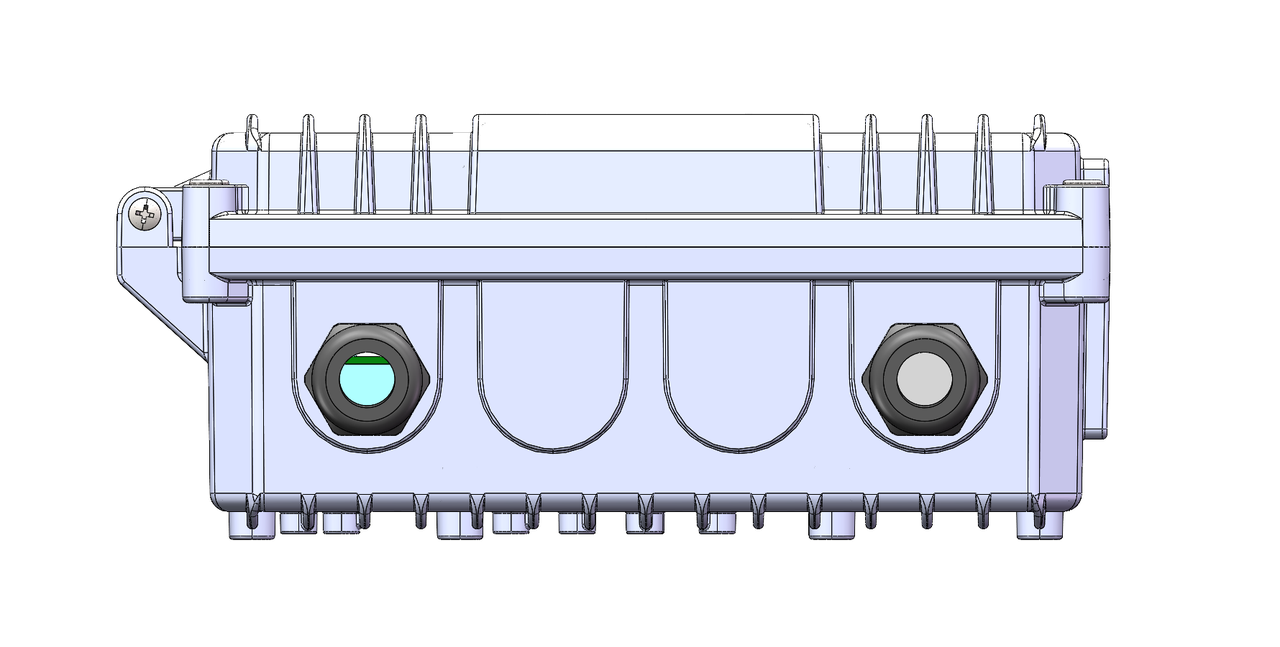

This equipment is the core component of an on-site emergency command and communication solution. It features the ability to acquire and transmit on-site images, voice, and data, and is suitable for applications such as mobile coverage, multi-hop relay transmission, and long-distance coverage. The outer casing uses a standard base station enclosure, offering high protection and allowing for long-term outdoor use.
Core Positioning: As the core equipment of the on-site emergency command and communication solution, it plays a critical communication hub role.
Multi-Service Integrated Transmission: It possesses integrated acquisition and transmission capabilities for on-site images, voice, and data, meeting the full range of communication needs for emergency command.
Flexible Networking and Coverage Capabilities: It supports mobile coverage, relay multi-hop transmission, and long-distance coverage, offering flexible networking and wide coverage.
High Protection and Outdoor Durability: Adopting a standard base station enclosure structure, it boasts a high level of protection and can withstand stable operation in harsh outdoor environments for extended periods.
Strong Scenario Adaptability: Suitable for various emergency sites, field operations, and long-term on-duty communication support scenarios.
| Name | Specification |
| RF Parameters
| Operating Frequency Band: 1.4 GHz (1420 MHz – 1530 MHz)
|
| Number of Channels: 2
| |
| Transmit Power: Maximum 33 dBm
| |
| Receiver Sensitivity: -97 dBm / 20 MHz (Access)
| |
| Performance Parameters
| Carrier Bandwidth: 5 MHz / 10 MHz / 20 MHz
|
| Network Capacity: Supports up to 32 nodes
| |
| Single-Hop Latency: One-way delay < 25 ms @ 20 MHz
| |
| Data Rate: Peak rate up to 80 Mbps
| |
| Interfaces

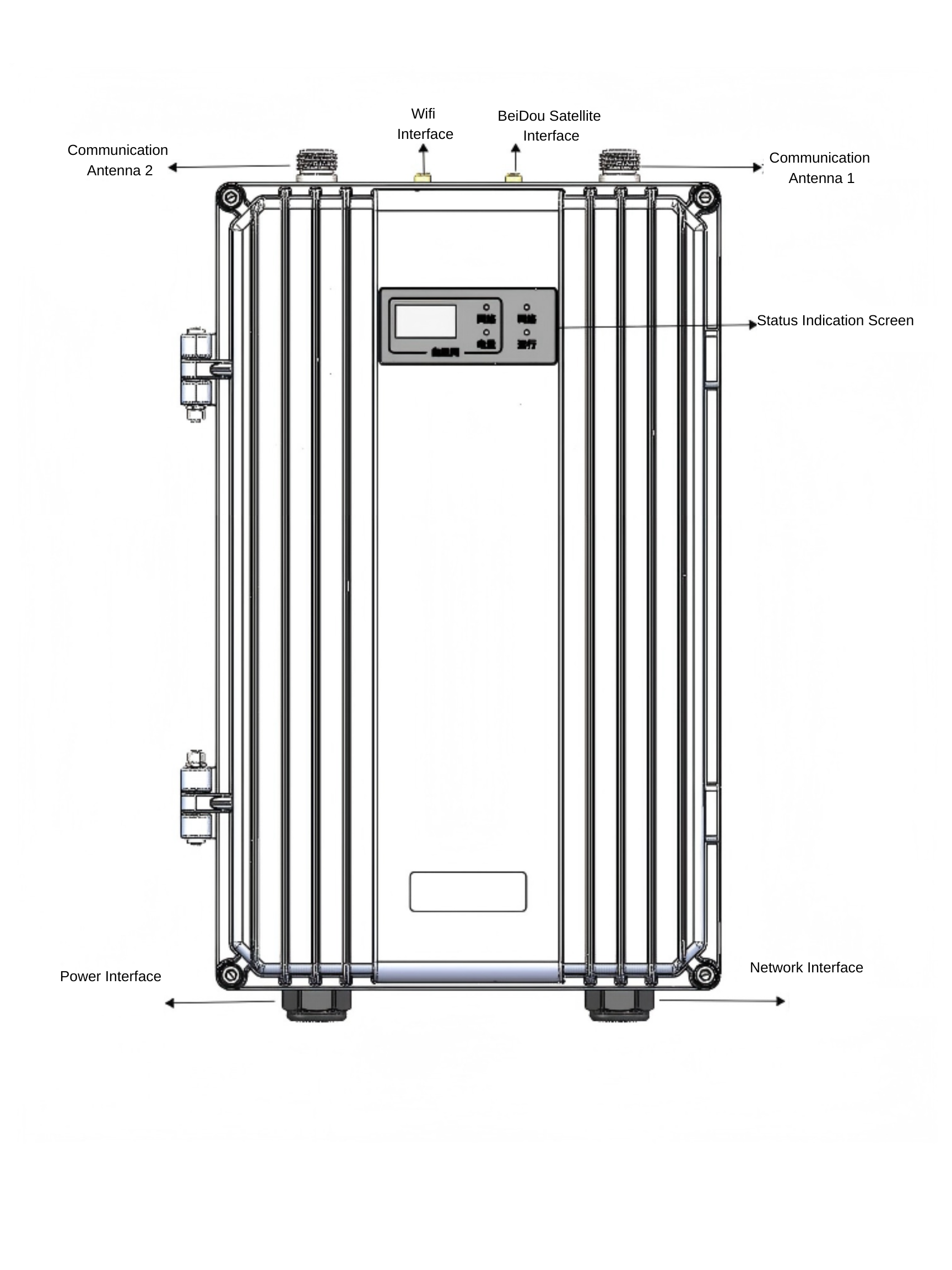

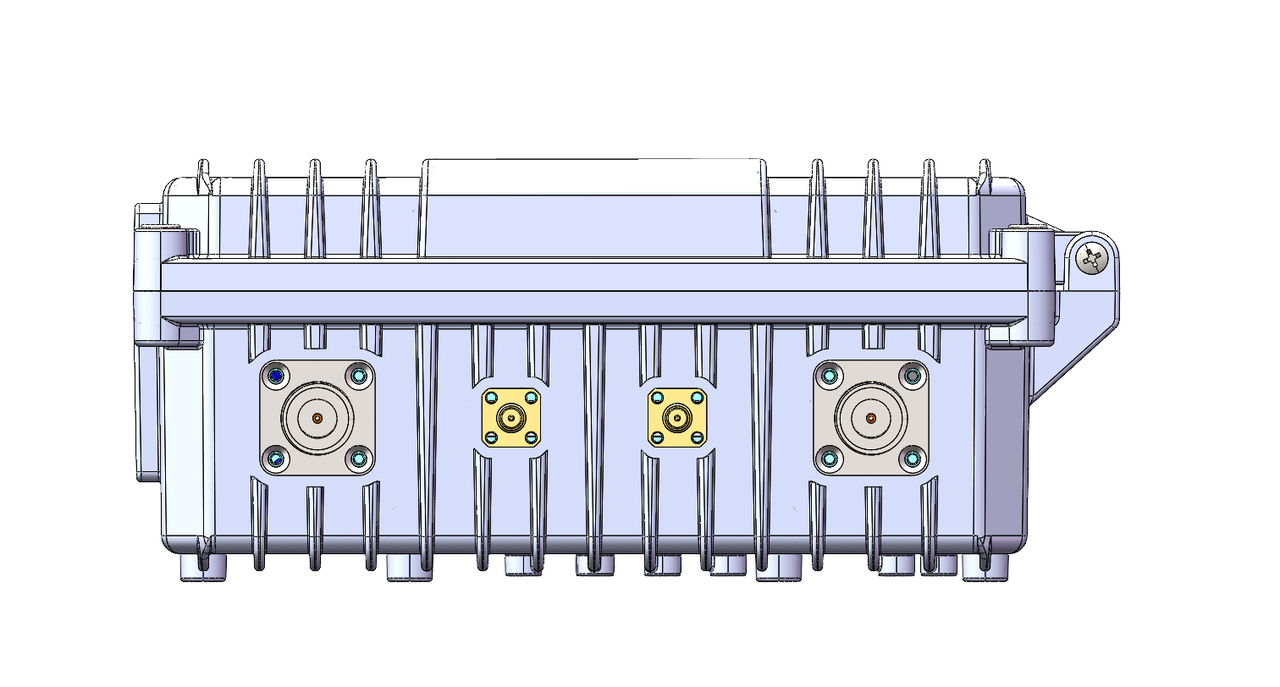

| 1 × RJ45 1 × Data Aviation Connector 1 × BD Interface 2 × 1.4 GHz Auxiliary Antennas
|
| Power Supply
| External Battery: 79,200 mAh
|
| Size | Dimensions：270*205*89.5mm |
| Weight | ＜4.5kg（excluding accessories） |
| Obedient temperature | Working temperature ：-20℃~55℃ Storage temperature ：-30℃~65℃ |
What are your core products?
A: Our core products include:
Portable Command & Dispatch Consoles
Integrated Triple-Screen Mobile Command Terminals
Emergency Communication System Solutions
Multi-Terminal Collaborative Command Platforms
What are the core advantages of your products?
A:
Rapid Deployment (Out-of-the-box readiness)
Multi-Network Convergence (4G/5G/Satellite/Private Networks)
Multi-Source Video Access (Drones, Body-worn cameras, etc.)
ntelligent Dispatch & Coordinated Command
