HCP-1000 Portable Command Terminal
Dedicated for best quality innovations

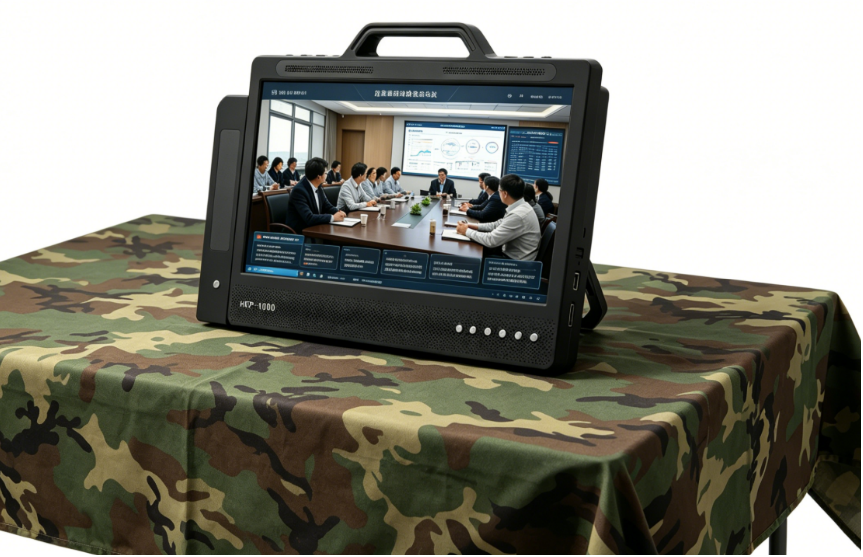

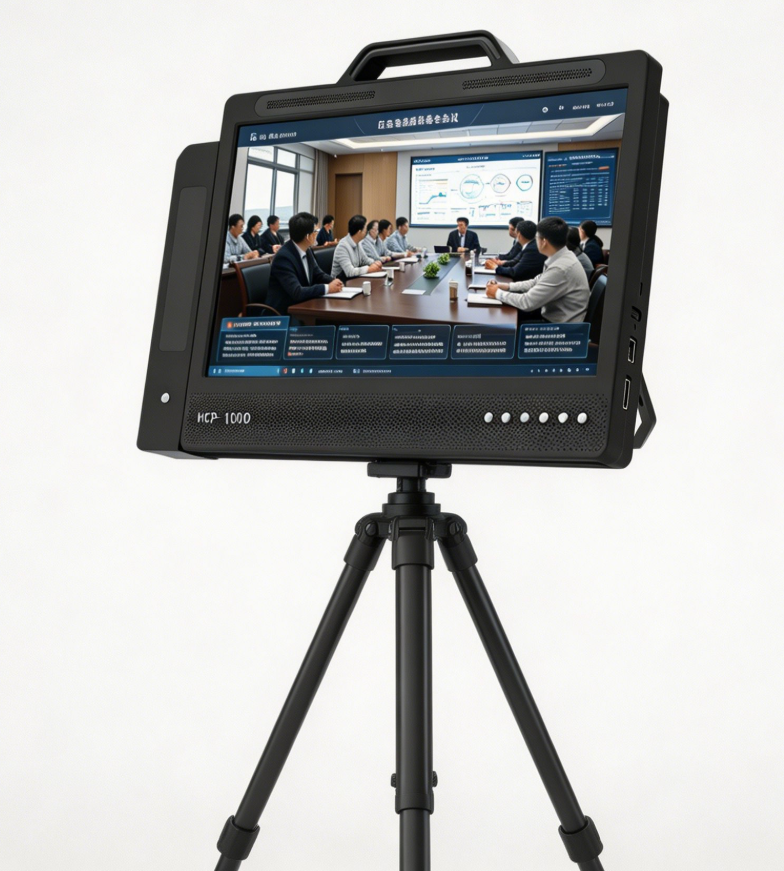

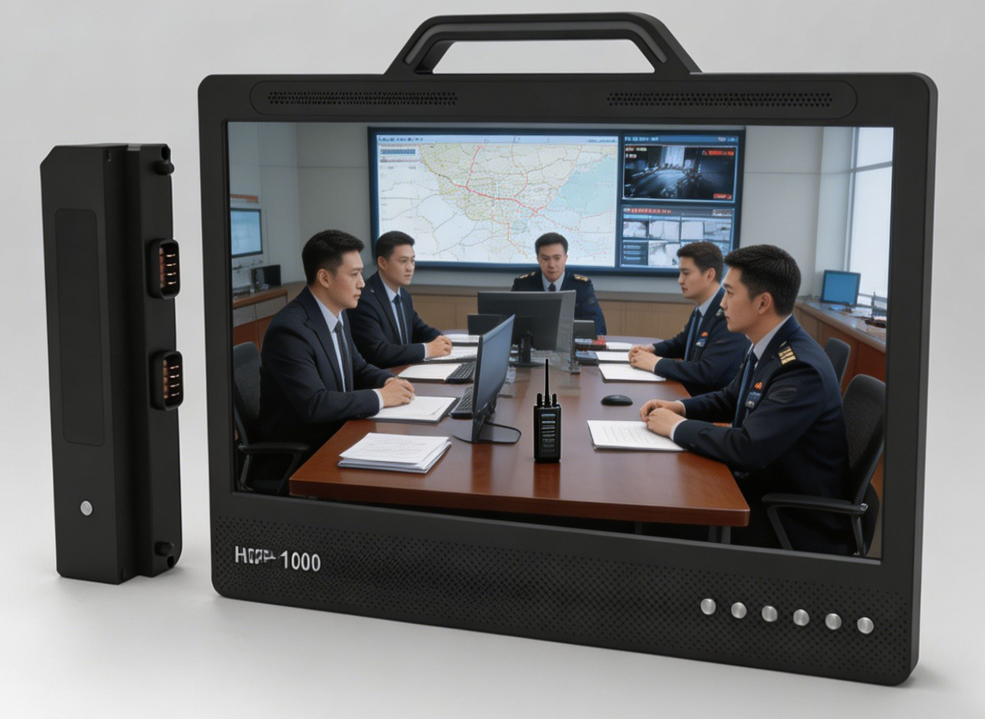

HCP-1000 Portable Command Terminal
The HCP-1000 is a portable video conferencing terminal designed for professional applications. Available in versions compatible with Android, HarmonyOS, x86, and Huawei’s conferencing architecture, it offers platform flexibility to suit diverse emergency command and dispatch ecosystems. It integrates key functional modules—including audio/video capture, network communication, high-definition display, and long-lasting power supply—condensing complex traditional conference room equipment into a single portable desktop terminal that greatly enhances deployment flexibility.
Equipped with a comprehensive array of interfaces, it supports HDMI video, 3.5mm audio, wired networking, Wi-Fi, and 5G connectivity. It allows for connections to external audio mixers, large displays, cameras, and speakers, meeting diverse transmission needs in emergency scenarios. 4x4 or 6x6 video matrix supporting multi-channel video switching; features a wide range of video input and output interfaces; supports complex video routing and signal switching to meet interconnection needs across multiple devices and scenarios. Equipped with a highly sensitive capacitive touchscreen, it supports multi-touch and precise gesture control with rapid responsiveness, delivering a smooth and intuitive user experience. Featuring a highly integrated design, it incorporates an HD camera, high-fidelity speakers, a built-in microphone, and a portrait fill light; the screen displays battery level and 5G signal strength, enabling immediate use and making it ideal for rapid emergency deployment. It features a built-in 5G routing module that supports SIM card-based network access and is compatible with both public and private 5G networks, ensuring stable, high-speed wireless communication in complex emergency environments; it also supports Wi-Fi, Bluetooth, and wired connections (note: the conferencing terminal version does not support Bluetooth).
HCP-1000GK Specification: Intel Core i5-1235U, 32GB DDR4 RAM / 1TB SSD
HCP-1000AZ Specification: RK3588 high-performance chip, 8GB DDR4 RAM / 256GB storage
HCP-1000HM Specification: RK3568 high-performance chip, 8GB DDR4 RAM / 256GB storage
HCP-1000HW Specification: Built-in Huawei CloudLink Bar310 all-in-one video conferencing terminal | Name | Specifications | |
| Display | 15.6 inch LCD screen；1920*1080 resolutions | |
| Multimedia framework protocols | ITU-T H.323、IETF SIP | |
| Video codec protocols
| H.265、H.265 SVC、H.264 HP、H.264 BP、H.264 SVC、H.263、H.263+ | |
| Audio codec protocols
| OPUS、AAC-LD、G.729A、G.722、G.722.1C、G.711U、G.711A | |
| Video features
| Active image resolution 1080p 60fps，1080p 30fps，720p 60fps，720p 30fps Active dual flows 1080P30 + 1080P30（4K8） 1080P60 + 1080P60（4K15） | |
| Bandwidth
| 64kbps～8Mbps | |
| Camera
| 200W，1920*1080 | |
| I/O ports | Power Port | DC 19V |
| Display Port | 2×HDMI IN、2×HDMI OUT | |
| Gigabit Ethernet port | 2×RJ45(10/100/1000Mbps Adaptive) | |
| Audio port | 2×internal speakers 、2×3.5mm | |
| USB | 1×USB3.0 | |
| Battery Power supply | Built-in battery: 185Wh high-capacity lithium battery, providing approximately 1–1.5 hours of power | |
| Operating temperature
| -10℃-50℃ | |
| Storage temperature | -30℃-65℃ | |
| Weight | 4.0 kg (excluding expansion modules) | |
| Communication networks | Supports 4G/5G, Wi-Fi, Bluetooth, and wired connections. | |
| Video Matrix | Supports a 6×6 video matrix and multi-channel signal processing (the HCP-1000HW is configured as a 4×4 video matrix). Processing: Supports HD video switching control. | |
| Dimension
| 430 × 310 × 55 mm | |
| Expansion ports | HDMI video ports: 4 inputs / 4 outputs (HCP-1000HW configured with 2 inputs / 2 outputs) 3.5mm audio ports: 1 input / 1 output RJ45 network ports: 2 LAN / 1 WAN (HCP-1000HW configured with 1 LAN + 1 Touch) USB ports: 2 x USB-A Handheld microphone port: 1 (HCP-1000HW does not have this port) SIM card slot: 1 | |
What are your core products?
A: Our core products include:
Portable Command & Dispatch Consoles
Integrated Triple-Screen Mobile Command Terminals
Emergency Communication System Solutions
Multi-Terminal Collaborative Command Platforms
What are the core advantages of your products?
A:
Rapid Deployment (Out-of-the-box readiness)
Multi-Network Convergence (4G/5G/Satellite/Private Networks)
Multi-Source Video Access (Drones, Body-worn cameras, etc.)
ntelligent Dispatch & Coordinated Command
