X4800 Trolley-style Portable Command Console
Dedicated for best quality innovations
X4800 Trolley-style Portable Command Console
IP65 rugged portable command center featuring 5G connectivity, integrated AV matrix, and built-in battery for rapid on-site emergency dispatch.
The X-4800 Portable Command Console is a portable multimedia command and dispatch platform. Featuring a trolley design, it can be carried by a single soldier to a designated location for immediate operation. It has wide applications in military and defense, public safety, utilities, field exploration, oil and gas, telecommunications, transportation, industrial manufacturing, and mobile commerce. Primarily used as a hub for outdoor and indoor video conferencing, multi-channel video switching, and communication, it features video matrix and voice fusion communication capabilities. The device’s exterior is constructed using a combination of aerospace-grade carbon fiber and aviation-grade aluminum profiles, reducing overall weight while enhancing equipment protection.

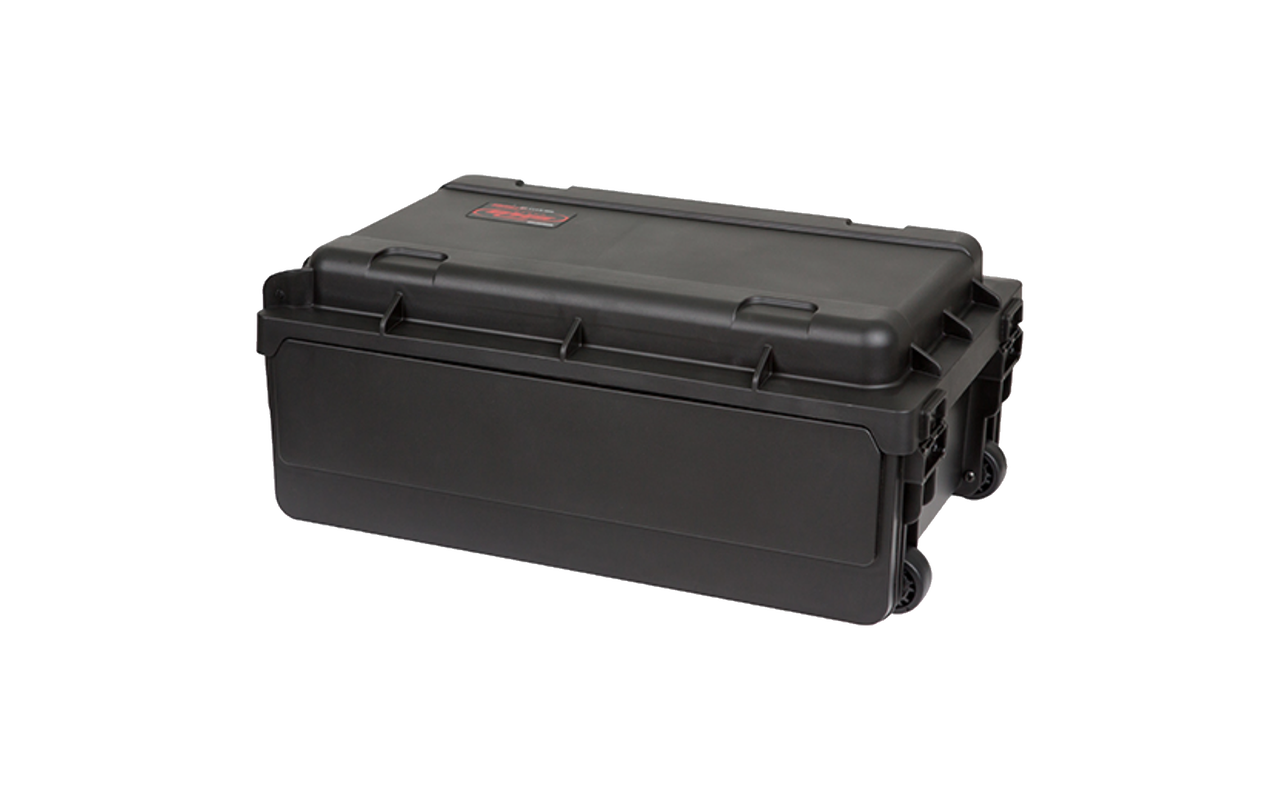

Compact and Lightweight: Weighing only 16-20kg, it can be carried on a trolley.

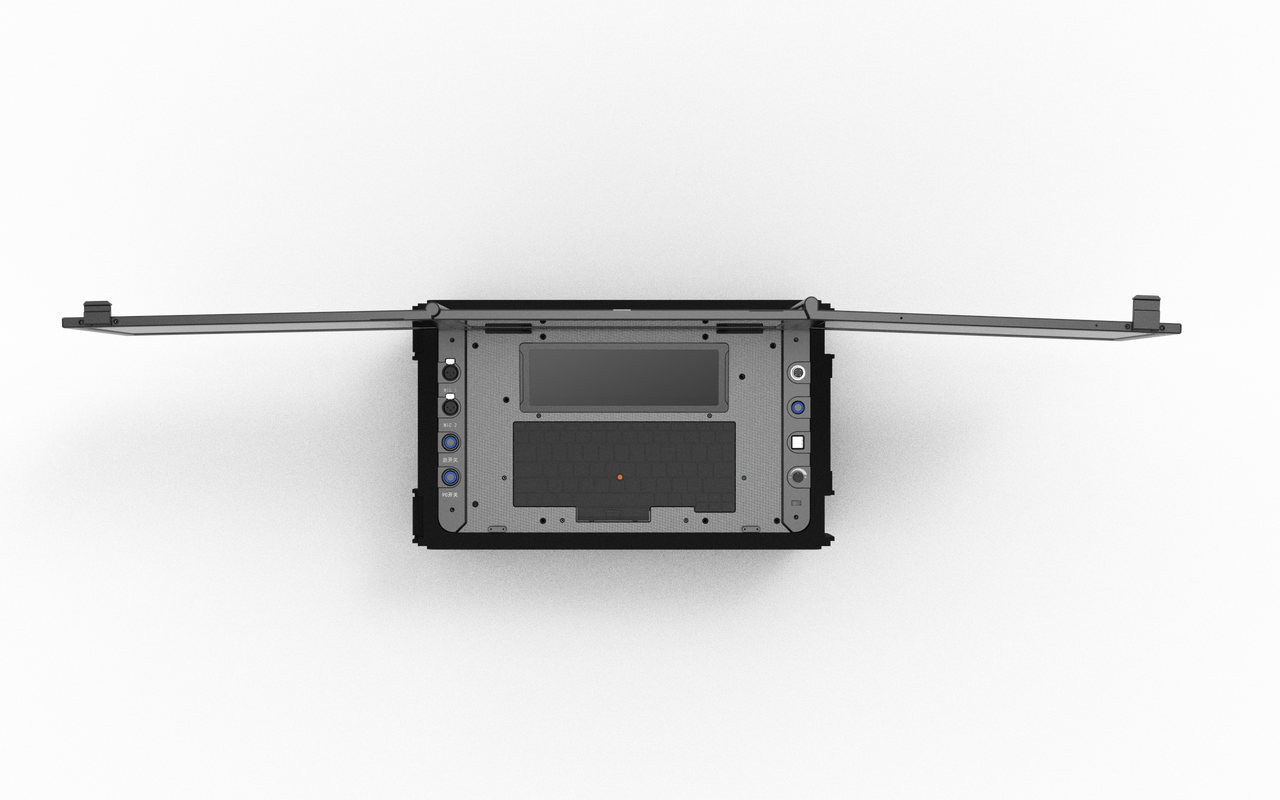

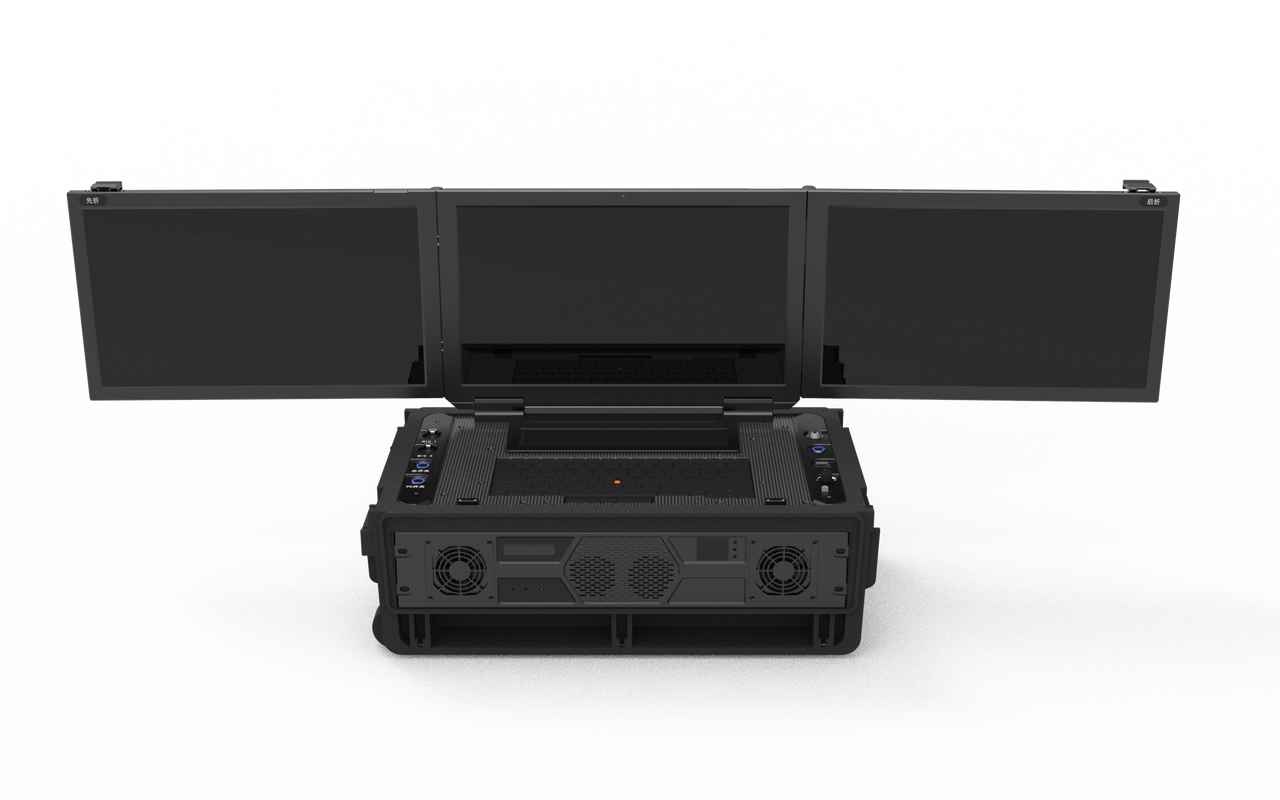

Multi-Screen Collaborative Display and Control: The three screens adopt a flip-up design. The left screen is the basic operation page of the industrial control computer, while the middle and right screens can be switched to video conferencing and a 4-screen split-screen mode.
On-Site Command and Dispatch: Quickly set up a temporary on-site command post, integrating and aggregating audio and video signals to achieve audio and video communication with the command center, facilitating command and dispatch.
Multi-Module Centralized Control: Integrated central touchscreen allows centralized control of the matrix, volume, screen splitting, and the on/off status of each module. The built-in matrix module aggregates audio and video signals from surrounding displays, microphones, image transmitters, drones, cameras, etc.
Full-Link Flexible Combination: Can integrate a self-organizing network module, enabling the establishment of a command link in extreme situations without a network.
Easily Cope with Extreme Environments: The enclosure uses a high-performance configuration, fully meeting the needs of digital battlefields for 3D modeling maps and command software.
| Name | Specification |
| Appearance size | Outer box dimensions: 552 mm * 349 mm * 232 mm Weight < 24 kg |
| Power interface | Power connector: 1 * triangular socket |
| USB ports | 2 *USB 2.0 |
| Video interfaces | Video inputs: 2 * HDMI Video outputs: 2 * HDMI |
| Radio interfaces | Audio output: 1 * 3.5mm + 1 * RCA Audio input: 1 * 3.5mm + 1 * RCA, 1 * XLR |
| Ethernet interface | 4*RJ45 ports, 10/100/1000Mbps |
| SIM slot | 1*SIM slot |
| Protection level | IP65 |
| Environmental requirements
| Working temperature：-10℃~50℃ Storage environment temperature：-25℃~60℃ |
| Video conference
| The default is Huawei Box310, but other brands of terminals can be selected as optional devices |
| Screen display | Screen size： 15.6 inches; Resolution: 1920*1080; |
| Video matrix | Video matrix parameters: 8-input 8-output video matrix |
| Radio matrix | Number of audio matrix control channels: 8*8 |
| Network routing | 5G full network compatibility, backward compatible with 2G, 3G, and 4G |
| Information processor | Processor: Intel Core i7-8650u (supports customized domestic processors) RAM: 32GB Storage: 1TB SSD |
| Battery | Battery capacity：300Wh |
| Intelligent voice | Optional features include voice status updates: low battery alarm, high/low temperature alarm, PC not shutting down properly alarm, etc. |
What are your core products?
A: Our core products include:
Portable Command & Dispatch Consoles
Integrated Triple-Screen Mobile Command Terminals
Emergency Communication System Solutions
Multi-Terminal Collaborative Command Platforms
What are the core advantages of your products?
A:
Rapid Deployment (Out-of-the-box readiness)
Multi-Network Convergence (4G/5G/Satellite/Private Networks)
Multi-Source Video Access (Drones, Body-worn cameras, etc.)
ntelligent Dispatch & Coordinated Command
