X6800 Multi-function Command Console
Heavy-duty multi-screen tactical command center with NVIDIA A40 GPU and 8×8 AV matrix, designed for mission-critical emergency dispatch and field communications.

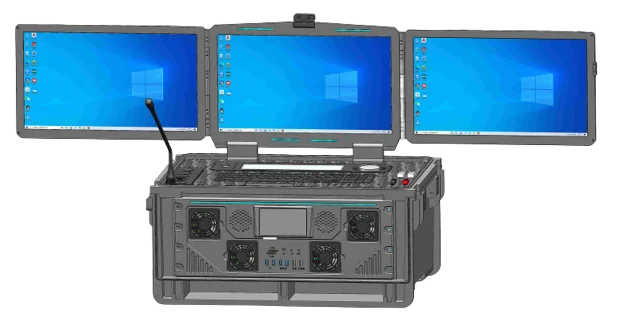

This product is a portable multimedia command and dispatch console. It integrates the technologies and functional modules of conventional command and dispatch applications into a rugged, wheeled case, allowing it to be carried by a single soldier or transported by vehicle to the appropriate location. It is ready to operate immediately upon unfolding. This product is suitable for application scenarios such as emergency command sites, open command posts, temporary command posts, and extended dispatch and command centers.
Portable and Lightweight: This device prioritizes integration and portability, designed with quality and customer satisfaction in mind.
Multi-Screen Collaborative Display and Control: The three screens feature a flip-up design (each screen is 17.3 inches), equipped with an 8-channel matrix and supporting splicing control.
Intelligent Voice Recognition: Enables voice control for scheduling meetings, monitoring video, and other command functions, facilitating use in bumpy environments.
Highly Integrated Modular Deployment: Includes video conferencing, converged communication, and network control modules. All modules have unified interfaces and are connected via a bus-style backplane.
Video Analysis and Judgment: The built-in matrix module aggregates audio and video from surrounding displays, microphones, image transmitters, drones, cameras, etc., analyzing and categorizing monitored content for rapid automatic switching.
| Name | Specification |
| Appearance size | 615mm*463mm*318mm ±5mm |
| Weight | ＜36kg |
| Power Interface | 1×AC~220V 50Hz |
| Power | ＜750W |
| Obedient temperature | Working temperature：－10℃～40℃ Working humidity：10%～90% |
| Protection level | IP54 |
| Interface | Video input interfaces: 4×HDMI, 1×TYPE-C Video output interfaces: 9×HDMI |
| Radio interface | Audio input interfaces: 1 x 3-pin XLR, 2 x RCA, 3 x 3.5mm, 1 x 3.81 terminal, 1 x 4-pin dedicated microphone; Audio output interfaces: 1 x 3-pin XLR, 2 x RCA, 4 x 3.5mm, 2 x 3.81 terminal |
| USB ports | 2×PC1, 2×PC2, 1×Conference |
| Information processor | PC1: Intel® Core i7-11700T 1.4GHz 8 cores, 16 threads, 96GB RAM, 1TB SSD, NVIDIA A40 48GB graphics card PC2: Intel® Core i7-8650U 1.9GHz 4 cores, 8 threads, 32GB RAM, 1TB SSD |
| Video codec | Supports 4×4 HDMI high-definition video input and output, and supports outputting network streaming media formats. |
| Network interfaces | 1×WAN、3×LAN、6×SMA |
| Other interfaces | 2 SIM card slots, 4 USB ports, 2 debug ports |
| Screen | 15.6~17.3 inches, brightness 500cd/㎡ |
| Central control screen | 8.8-inch capacitive touchscreen central control screen |
| Audio and video matrix | 8×8 video matrix with splicing control, 8×8 audio matrix |
What are your core products?
A: Our core products include:
Portable Command & Dispatch Consoles
Integrated Triple-Screen Mobile Command Terminals
Emergency Communication System Solutions
Multi-Terminal Collaborative Command Platforms
What are the core advantages of your products?
A:
Rapid Deployment (Out-of-the-box readiness)
Multi-Network Convergence (4G/5G/Satellite/Private Networks)
Multi-Source Video Access (Drones, Body-worn cameras, etc.)
ntelligent Dispatch & Coordinated Command
