Field dispatch environments demand rapid deployment and extreme physical durability. When choosing mobile command center manufacturers, public safety agencies must prioritize integrated architecture over piecemeal systems. The upgraded LinkValue X4800 is engineered to meet these strict civil protection standards, functioning as a high-performance portable command platform for extreme field environments.
Traditional dispatch setups rely on heavy, vehicle-mounted systems that limit accessibility in rugged terrain. By integrating processing, display, and routing hardware into a single chassis,modern command units ensure immediate readiness in field operations, allowing operators to establish an active command & dispatch console within seconds of arriving on-site.

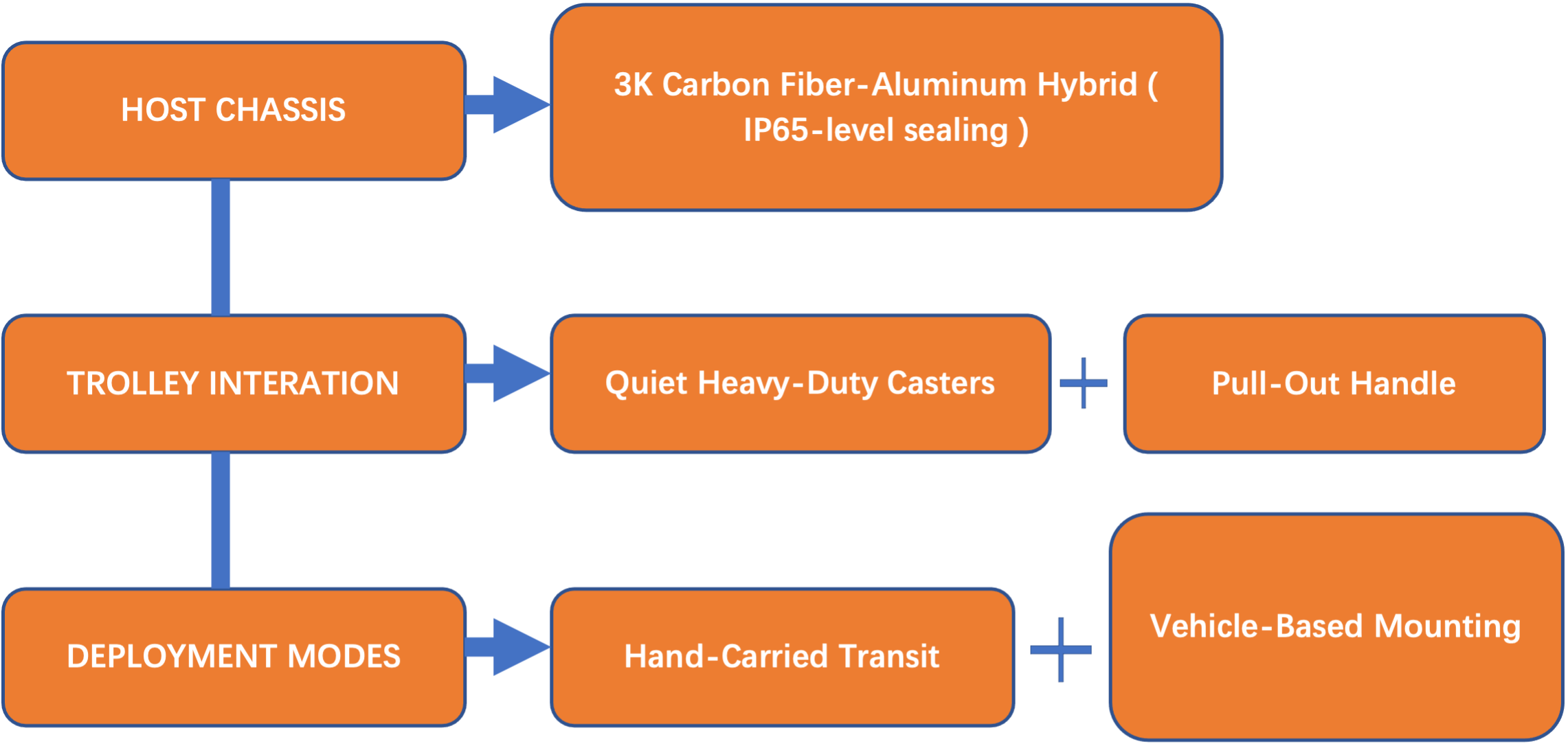

The Single-Operator Mobility: The New Trolley Design of the X4800
Rapid mobilization is critical during the first hours of an emergency response. The upgraded X4800 features a unique Trolley-style Portable Command Console design equipped with quiet, heavyduty wheels and a rugged pull-out handle. This design allows a single emergency operator to transport a complete portable command center across uneven ground, eliminating the deployment delays of traditional command platforms.
The physical footprint is optimized for standard transport. Its exterior dimensions measure exactly 552mm * 349mm * 232mm, making it highly packable in standard emergency vehicles. With a total dry weight kept strictly under 24 kg, it avoids the transit limitations of heavier platforms, vehiclebound command centers.
Hardware Integration: IP65 Protection & Audio-Video Matrix
Structural integrity is achieved through a high-integrity hybrid of carbon fiber and aviation-grade aluminum profiles. This hybrid material offers maximum structural rigidity while preventing waterand dust ingress under extreme conditions. The entire enclosure is certified to meet IP65 dust-proof and water-resistant sealing standards, ensuring survival in heavy rain.
| AUDIO-VIDEO SIGNAL MATRIX HARDWARE INPUT/OUTPUT PATH | ||
| Input Feeds | Audio/Video Matrix Routing | Target Display Array |
| UAV Thermal Feed | Hardware-Level 16*16 Matrix | Foldable Screen 1 (Left) |
Onsite CCTV Stream | Zero-Latency Switch Bus | Foldable Screen 2 (Center) |
| First Responder Cam | Physical Control Relays | Foldable Screen 3 (Right) |
| Local Analog Audio | Integrated Signal Mixer | Dedicated Audio Out Terminal |

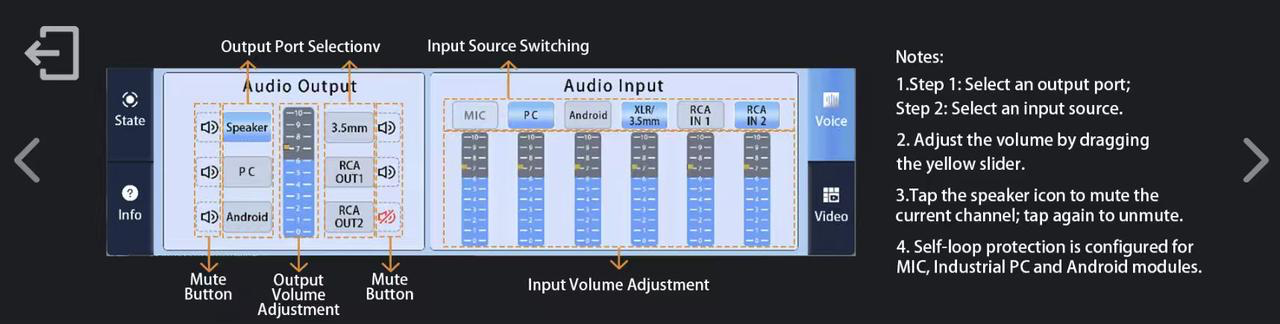

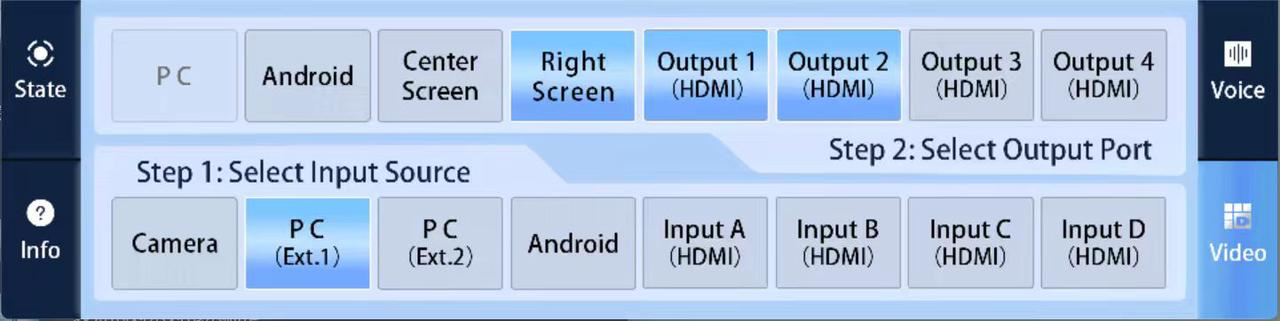

Complex field scenarios require simultaneous monitoring of multiple data feeds. The X4800 addresses this with an integrated hardware-level 8×8 Audio Matrix and 8×8 Video Matrix. Operators can instantly route and switch four independent incoming feeds, such as UAV video streams, thermal imaging cameras, and civil protection CCTV, directly to the integrated triple-screen display array of this portable emergency command system.
Centralized control reduces diagnostic delays when managing complex command centers. Physical switches allow zero-latency source selection, bypassing software failures that often plague consumer-grade setups in field environments.
Independent Power & Field Connectivity

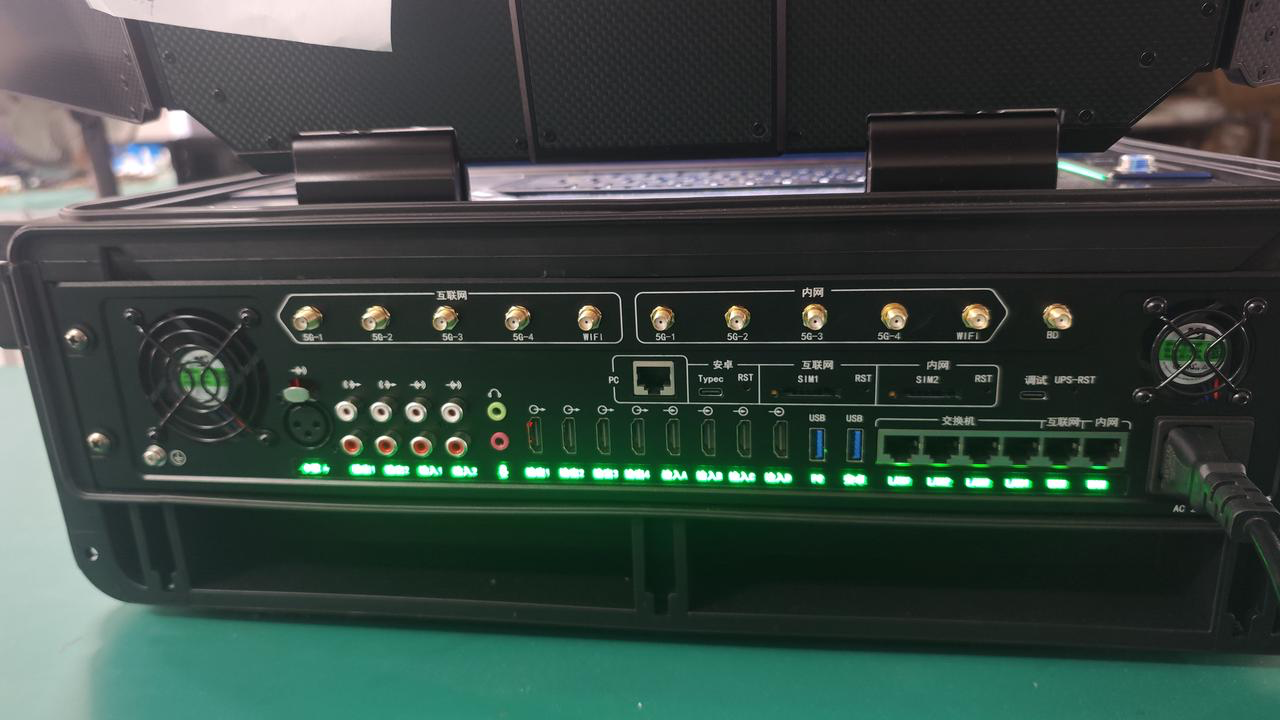

Reliable data throughput is the core of any portable emergency command system. The X4800 features an embedded 5G full network router, equipped with 4*RJ45 Gigabit Ethernet ports and 1 *SIM card slot to secure cellular redundancy. This configuration ensures continuous upstream and downstream bandwidth even in remote disaster zones.
Processing power is driven by an i7-8650U processing core. This processor is paired with 32GB RAM and a high-performance 1TB External Solid Drive(SSD), providing the compute performance required to run local GIS mapping software and multi-channel video decoding.
Off-grid survival is supported by an integrated 300Wh high-capacity lithium battery pack. This onboard power source enables immediate operation upon deployment, providing first responders with critical setup time before external generators are established.
Technical FAQ about X4800
- What is the ingress protection rating of the X4800 enclosure?
The upgraded X4800 is certified to IP65 dust-proof and water-resistant standards. It utilizes a carbon fiber-aluminum hybrid chassis with sealed gaskets to prevent water jets and fine particulate matter from entering the internal computing bay. - How to get mobile operations center capabilities running in off-grid disaster zones?
To learn how to get mobile operations center capabilities established immediately, deploy the X4800 using its trolley chassis, deploy the integrated triple screens, and power on the system using the internal 300Wh Connect to local networks via the embedded 5G router with its dedicated 1*SIM card slot or utilize the 4*RJ45 gigabit ports for satellite backhaul integration. - Does the integrated video matrix support third-party hardware integration? Yes, the hardware-level 8×8 video matrix operates independently of the main operating system. It features standard physical interfaces to accept external video inputs from UAVs, thermal cameras, and local IP feeds, routing them directly to the display array without processing lag.
- What are the advantages of the X4800 over the X1800? Yes, the hardware-level 8×8 video matrix operates independently of the main operating system. It features standard physical interfaces to accept external video inputs from UAVs, thermal cameras, and local IP feeds, routing them directly to the display array without processing lag.
As an advanced portable command platform, the LinkValue X4800 is equipped with silent, mobile casters and features an integrated 2U-height design with front and rear control panels. Compared to the ultra-lightweight X1800, it supports an integrated high-capacity energy storage battery, effectively extending continuous operation time for this portable emergency command system.
The equipment supports two deployment modes—single-operator transport and vehicle-based transport—allowing for immediate setup and rapid activation upon arrival at the emergency operation site. This flexible setup is optimized for critical environments, including emergency command sites, temporary field command posts, field training command centers, and scalable dispatch and command hubs.

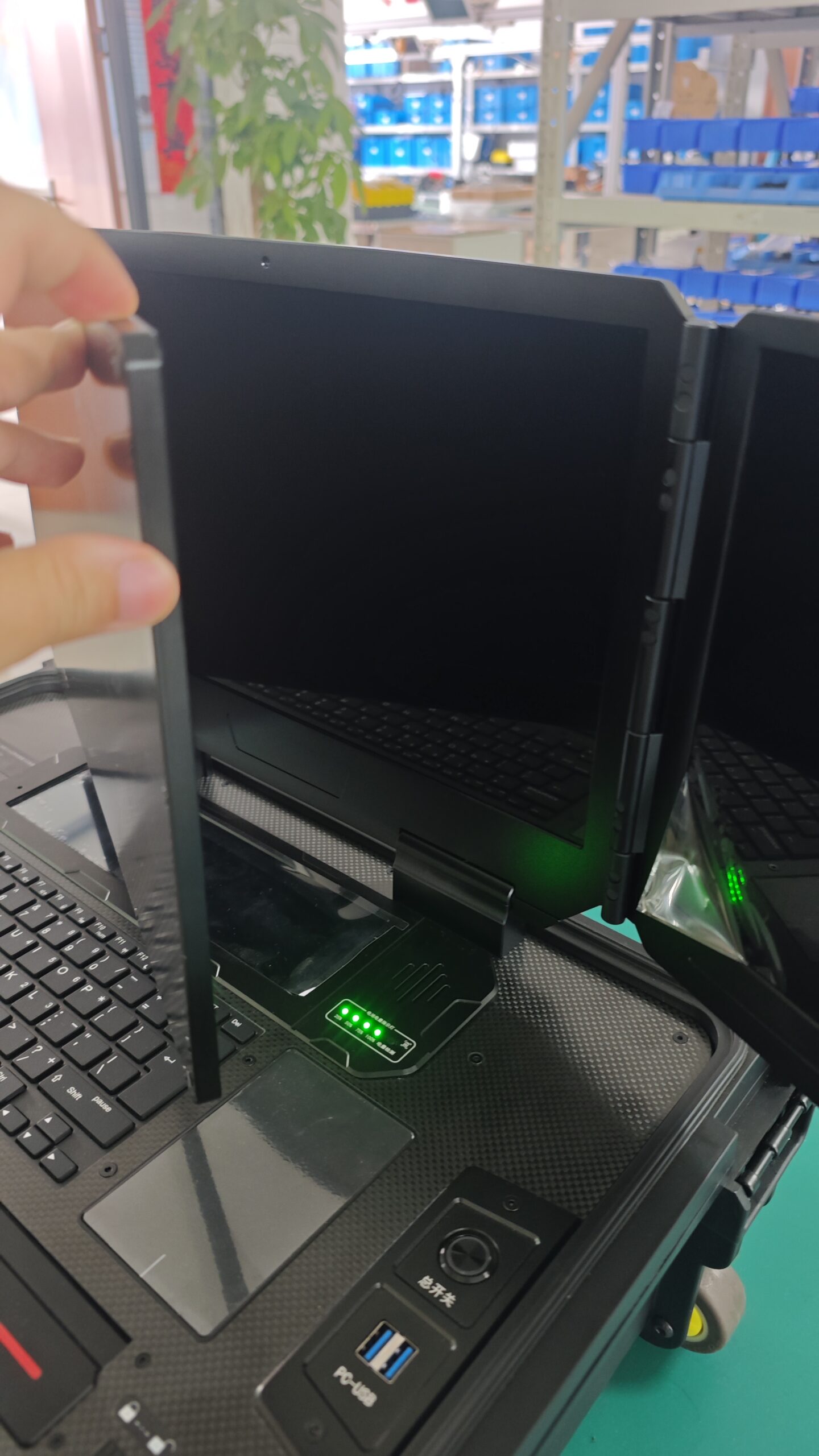

Operating as a dual-sided command & dispatch console, the device features dual screens capable of folding backward, enabling simultaneous operations from both the front and rear. Additionally, the top panel utilizes a waterproof design, ensuring excellent adaptability to outdoor environments.
