Selecting an industrial rugged workstation for extreme environments requires evaluating computing power, physical expansion, and thermal limits. Standard consumer laptops fail under intense shock, vibration, and extreme temperatures. In contrast, deploying a certified rugged workstation ensures operational continuity where commercial hardware breaks down.
The LinkValue X1800 and X6800 represent two distinct engineering paths for field computing. Specifically, the X1800 focuses on lightweight, highly portable diagnostic tasks. In contrast, the X6800 functions as a heavy-duty processing powerhouse for multi-screen visualization. Both platforms eliminate traditional failure points by consolidating high-density electronics into impact-resistant enclosures.
Form Factor Analysis: Lightweight Rugged Workstation vs. Multi-Screen Powerhouse
For engineering and onsite diagnostic crews, choosing a heavy duty laptop for work requires balancing physical transit limits with processing capabilities. A standard system cannot survive the high-shock environments of industrial field sites. Therefore, modern systems integrate aerospace-grade aluminum frames and specialized shock-absorbing internal mounts. Consequently, this robust engineering safeguards operational data during transit and active deployment.
| CHASSIS PHYSICAL MATERIAL MATRIX | ||
| Parameter | LinkValue X1800 | LinkValue X6800 |
| Primary Case Material | 3K Aerospace Carbon Fiber | Aviation Aluminum Alloy |
| Manufacturing Process | Composite Layup Molding | Multi-Axis CNC Machined |
| Structural Weight Limit | 12.5kg | <36kg |
| Physical Box Dimensions | 514mm * 422mm * 154mm | Custom Quad-Screen Case |
| Parameter | LinkValue X1800 | LinkValue X6800 |
| Chassis Form Factor | Slim, integrated clamshell | Expandable Multi-Screen Case |
| Display Layout | Single High-NIT Screen | Triple Screen Deployable |
| Storage Redundancy | Dual-slot NVMe RAID 0/1 | Multi-drive Hot-Swap Bay |
| Thermal Architecture | Passive Heatpipe Sealed | Active Forced-Air (IP65 Level) |
X1800 Ultralight Engineering Specifications
The LinkValue X1800 pioneers ultra-lightweight field operations, designated officially as the Hand-held Portable Command Console. Specifically, the physical dry weight remains strictly at 12.5 kg (±0.5 kg). Depending on internal hardware configurations, engineering teams can customize this payload down to 8.3 kg. In addition, the compact enclosure measures exactly 514mm by 422mm by 154mm. The outer shell combines 3K aerospace-grade carbon fiber with aviation aluminum alloy CNC-processed parts. Furthermore, this hybrid chassis achieves a certified IP66 ingress protection rating against dust and high-pressure water jets.
This agile industrial system features a 15.6-inch folding 1080P screen for active field operations. An internal DC 12.6V 200Wh high-performance lithium battery powers the unit during off-grid missions. An Intel Core i7-8650U quad-core, 8-thread processor drives baseline computing with up to 96GB RAM. In addition, operators can select optional Intel Core i7-10700T or i9-11700T processor upgrades for intensive data workloads. The hardware integrates three RJ45 Gigabit Ethernet ports alongside an embedded 5G full-network router. Moreover, pre-wired interfaces ensure full hardware compatibility with the Huawei BAR310 video conferencing terminal for instant field communication.
X1800

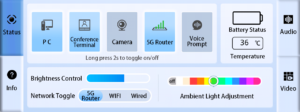

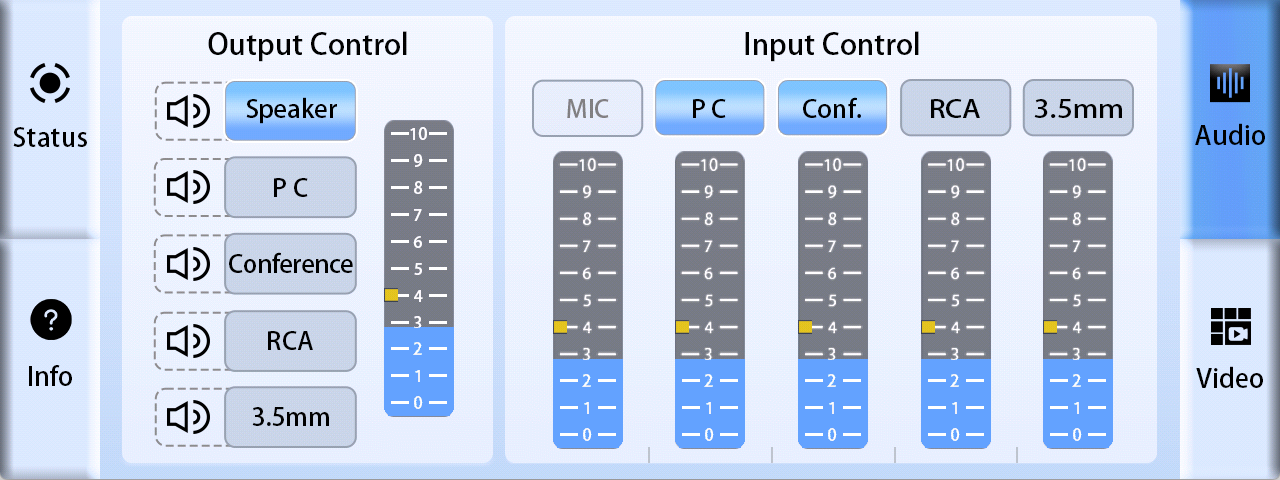

Central Control Screen UI of X1800
System Isolation and Architecture of the X6800 Heavy-Duty Rugged Workstation
When field operations require massive computing density, standard portable form factors are insufficient. While a compact tough tablet pc is ideal for basic handheld field data collection, complex tasks require a mobile server. The LinkValue X6800 functions as an on-site data hub, featuring a triple-screen display array and heavy-duty structural corners to withstand intense vibrations.
| LinkValue X6800 | |
| [Screen 1] [Screen 2] [Screen 3] | Triple Displays |
| 8.8-inch Touchscreen Controller | Splicing Control |
| Integrated 8×8 AV Matrix Hub | < 4 In / 9 Out HDMI |
The LinkValue X6800 is officially designated as the X6800 (Multi-function Command Console). It meets rigorous IP54 protection benchmarks while maintaining a total weight under 36 kg. Specifically, the system features a unique quad-screen layout. This array combines triple 15.6-inch folding screens (500cd/m2 sunlight-viewable) with an 8.8-inch capacitive central control screen. Therefore, field engineers run complex dashboards and multi-angle video splicing simultaneously.
To ensure total system isolation in mission-critical environments, this rugged workstation incorporates two independent computers:
PC1 (Primary Compute): Powered by an Intel Core i7-11700T 8-core processor with 96GB RAM and an NVIDIA A40 48GB professional GPU.
PC2 (Secondary Control): Driven by an independent Intel Core i7-8650U processor with 32GB RAM.
This dual-system architecture physically separates data processing from transmission control, preventing system-wide crashes. In addition, the hardware features a built-in 8×8 audio-video matrix with screen-splicing control. The interface array supports 4 HDMI inputs and 9 HDMI outputs. Furthermore, it incorporates 6 SMA antenna interfaces alongside legacy 3-pin XLR and RCA audio connectors.

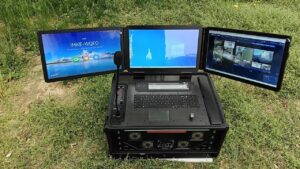

X6800

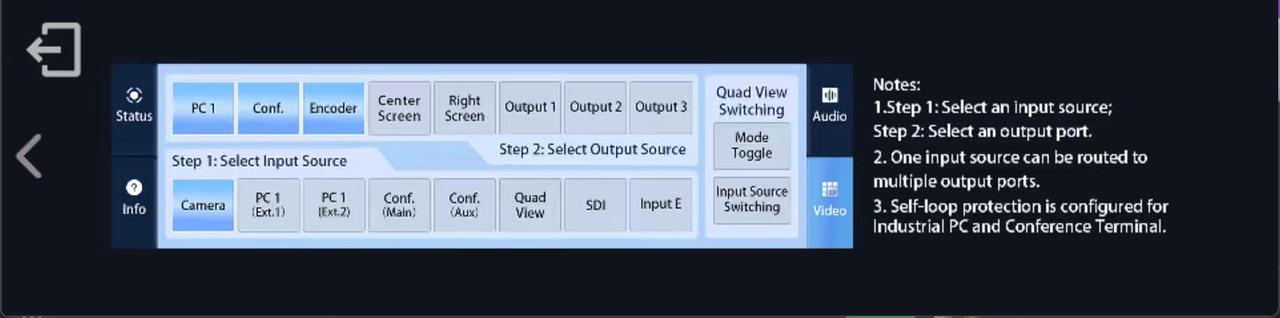

Central Screen UI of X6800
Heavy-Industrial Design Specifications for Deploying a Rugged Workstation
In the competitive landscape of specialized electronics, organizations often analyze the classic market dynamic of getac vs toughbook to find a system that balances performance and cost. Procurement officers recognize the strict physical testing required for industrial deployments. Sourcing specialized hardware requires looking beyond established legacy brands to find agile, highly customizable alternatives.
GLOBAL INDUSTRIAL STRUCTURAL DESIGN MATRIX | ||
| Design Specification | Standard Laptop | LinkValue rugged pc |
| Sealing Architecture | Standard Vented Enclosure | Designed to IP66/IP54 |
| Shock Mitigation | Rigid Plastic Frame | Shock-Isolating Mounts |
| Frame Engineering | Thin Aluminum Sheet/Plastic | CNC Aviation-Alloy/3K CF |
| Hardware Modularity | Standard Fixed I/O | Custom COTS Interface |
For global industrial deployments, selecting computers built with advanced physical sealing and heavy-duty materials ensures safe on-site integration. Consumer laptops fail under sustained vibration. In contrast, an industrial rugged workstation provides the thermal resilience required for international field reliability. Our engineering guidelines isolate all computing and routing layers with electromagnetic shielding and custom CNC structures. Consequently, high-frequency processor clock cycles never interfere with sensitive external sensors, geological survey equipment, or nearby radio systems.
Technical FAQ: Selecting the Right Industrial Rugged Workstation
- Are there any waterproof laptops?
Field operators frequently ask whether waterproof laptops exist to prevent terminal failure during sudden downpours. True consumer waterproof laptops do not exist. In contrast, the LinkValue X1800 features a fully sealed IP66 chassis. Furthermore, both platforms comply with international IEC 60529 ingress protection standards. Therefore, this sealed enclosure protects internal electronics against continuous high-pressure water streams from any angle.
- How does the X1800 handle extreme physical shock compared to the X6800?
The X1800 is a highly integrated, lightweight terminal designed to survive a 1.2 meter concrete drop, utilizing structural engineering principles in accordance with standard environmental test specifications (such as physical shock and drop profiles). In contrast, the X6800 features a heavier, dual-metal chassis with advanced shock isolation mounts designed to protect its internal multi-drive arrays and triple-screen display hinges from severe, continuous industrial vibration.
- Why does the X6800 utilize a dual independent PC system?
The dual independent PC system of the X6800 provides complete physical isolation between primary data analysis and communication routing. By separating the high-performance PC1 (Intel i7- 11700T with NVIDIAA40 GPU) from the control PC2 (Intel i7-8650U), the workstation prevents software bottlenecks. This configuration ensures that if one operating system faces a critical error, the other continues running without interruption, maintaining on-site command integrity.
